Introduction:

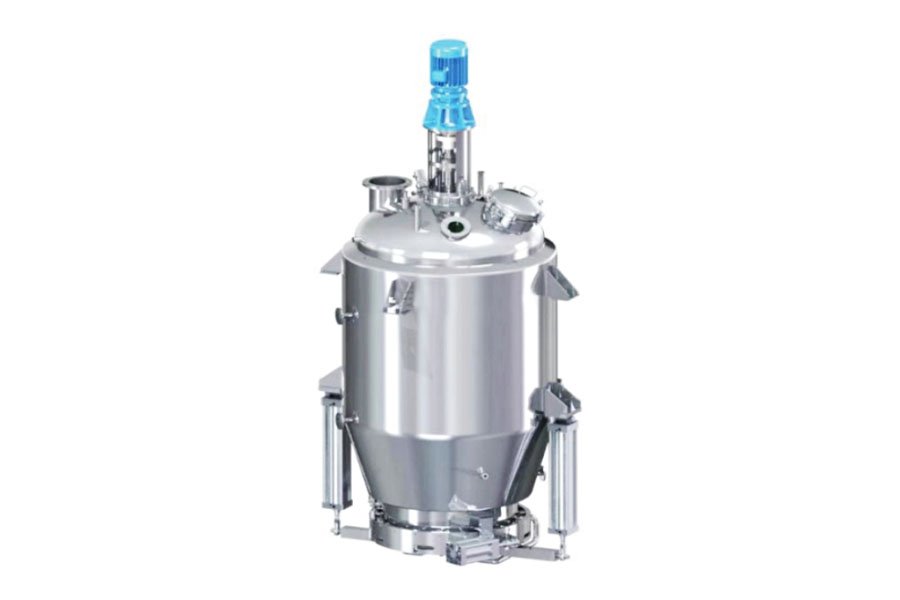

Multifunctional extraction tanks are used for extracting effective substances from Chinese medicinal herbs, food products, and condiments during production. They can employ various processes including atmospheric pressure, pressurized extraction, hot reflux, percolation, and aromatic oil recovery.

Extraction tank types: Conical, oblique conical, cylindrical, mushroom-shaped, etc.

Extraction methods: Static single-tank extraction, multifunctional extraction, dynamic stirring extraction, forced circulation dynamic extraction, and other forms.

Enquire now

Product details

Spec./Model	TQ- D-0.5	TQ- D-1.0	TQ- D-2.0	TQ- D-3.0	TQ- D-6.0	TQ- D-8.0	TQ- Z-1.0	TQ- Z-2.0	TQ- Z-3.0	TQ- Z-6.0	TQ- Z-8.0	TQ- Z-10
Volume	750	1200	2300	3400	6400	8500	1200	2300	3200	6300	8500	11000
Compressed air pressure	0.6- 0.7	0.6- 0.7	0.6- 0.7	0.6- 0.7	0.6- 0.7	0.6- 0.7	0.6- 0.7	0.6- 0.7	0.6- 0.7	0.6- 0.7	0.6- 0.7	0.6- 0.7
Heating area	2.0	5.3	5.3	6.8	8.5	10.5	3.0	4.7	6.0	7.5	9.5	12
Condensation area	3	4	4	6	8	12	4	4	5	5	8	10
Cooling area	0.5	1	1	1	2	2	1	1	1	2	2	3
Slag gatearea	800	1000	1200	1500	1700	1900	800	800	800	1000	1000	1000
Energy consumption	145	195	258	300	552	728	245	325	345	645	720	850
