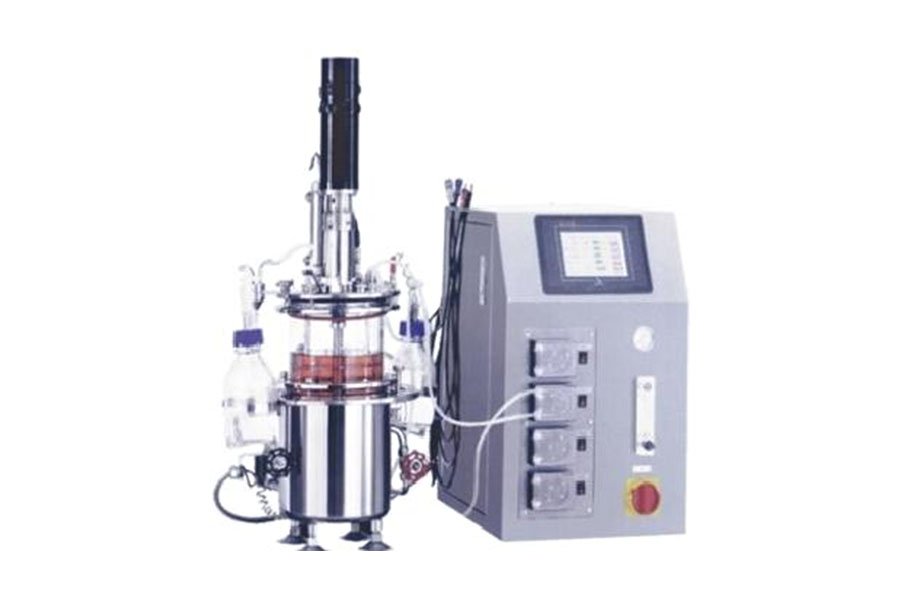

Mechanically stirred glass fermentation tank

Introduction:

Nominal Volume: 10L, 15L, 30L, 50L, 70L, 100L, 150L, 200L…

Filling Coefficient: ≥70%

Tank Configuration: SUS316L/SUS304 stainless steel; jacketed temperature control, optimized flow guidance design; polished inner surface, RaV1≤0.6μm; polished or matte outer surface; large-viewing-angle long strip sight glass; complete interfaces for pH electrode, DO electrode, and temperature electrode; tank lid equipped with flame interface and spare filling interface, etc.

Agitation System: Top-mounted mechanical agitation system; aseptic mechanical sealing system; DC or AC motor; standard configuration includes 2-layer straight impellers with high-efficiency defoamer impellers; oblique blade, curved blade, and axial flow impellers are also available; adjustable speed, digitally set speed control.

Structure: Floor-standing frame structure, space-saving and easy to operate.
