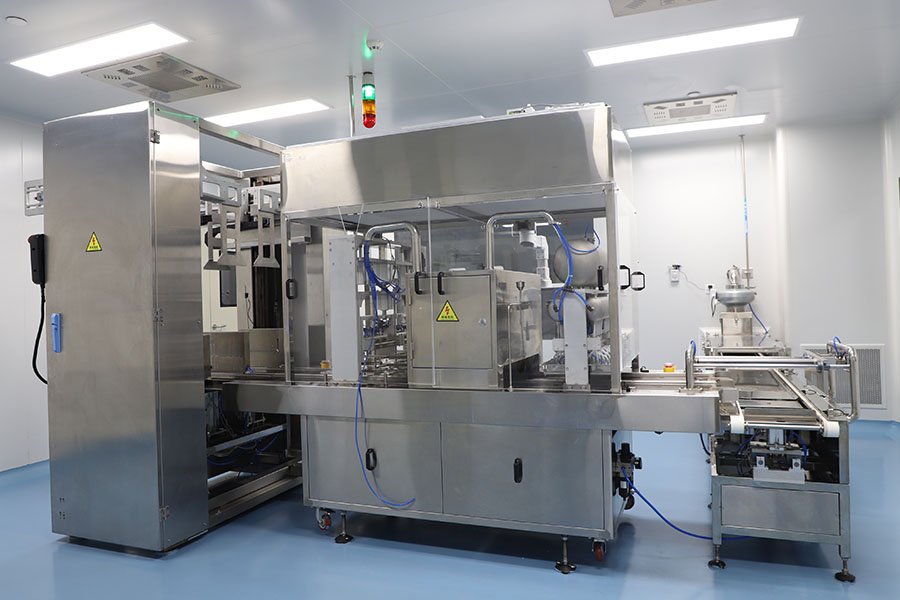

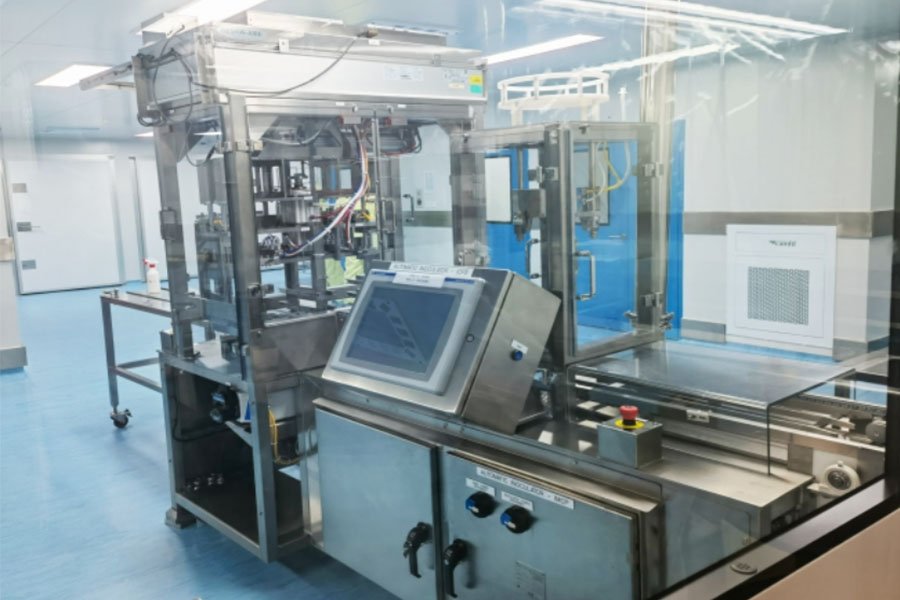

Chicken embryo inoculation machine

The whole process of inoculation is automated

High intelligence,can automatically complete the egg disinfection,sterile air drying,drilling,injection poison, injection needle disinfection and other processes,the whole process is controlled by programmable controller.Because of the small pinholes,chicken embryos do not need to be sealed.The device can process 15,000 to 16,000 chicken eggs per hour.

Process aseptic environment

The whole process is carried out unde the 100-stage lamina flow hood to ensure that the engineering is aseptic operation.

Save manpower

3 People are required to complete the equipment operation,and the labor intensity is greatly reduced.One person delivers eggs to the machine,one person receives them,and one person supplies them to the incubator It can usually complete the work tasks of about 20 people.

Increase single yield and titer of chicken embryo

The uniformity of product quality is good.The practice showed that the single yield of chicken embryo allantoic fluid was higher,the titer was higher and the waste embryo rate was lower than that of artificial inoculation.The waste embryo rate was 4-6 percentage points lower than that of artificial injection.The error of injection amount is not more than 4%.

Simple operation

The needle can be installed and disassembled in one piece and placed in a despotic stainless steel case for sterilization.After the venom bottle is put into the rack tightly,it can be inoculated.After the work is completed,clean it in place with prepared sterile wate.During the operation of the equipment,the amount of poison injection can be detected at any time to ensure the accuracy of the injection work.When the pressure fluctuation occurs,the device automatically gives an alarm and automatically takes the necessary protective measures.

Small fotprint

Length Xwidth X height=2.4 m×0.6m×2m

All parts are made in China

The egg plate adopts standard domestic egg plate.Injection needles,hose and other consumables are all made of materials sold on the market,and do not need to be purchased by manufacturers.

Low energy consumption

Power consumption is about 150W.Use oil-free,water-free 0.4MPa compressed air.

Comply with GMP requirements

The body is made of 304 stainless steel parts,and the key parts are made of 316L stainless steel materials. The appearance of the device is smooth and there are no dirt points.Easy to maintain.High efficiency filter is used to supply air in the working area,and the wind speed is greater than 0.25 meters per second.

Germ virus vaccine production line operation

The production line operation of germ virus vaccine can be realized by combining the use of chicken embryo egg testing machine,allantoic fluid harvesting machine and waste embryo processor.The whole production process is automated,the field area is less,the operator is saved,the product quality is improved,and the pollution lossis reduced.

Wide applicability

Standard eg tray 36,42,72,150 pieces
